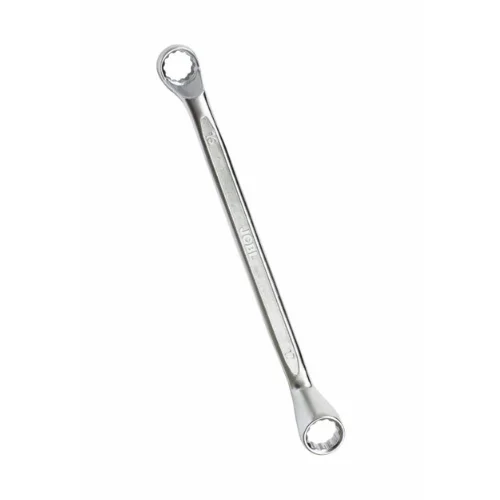

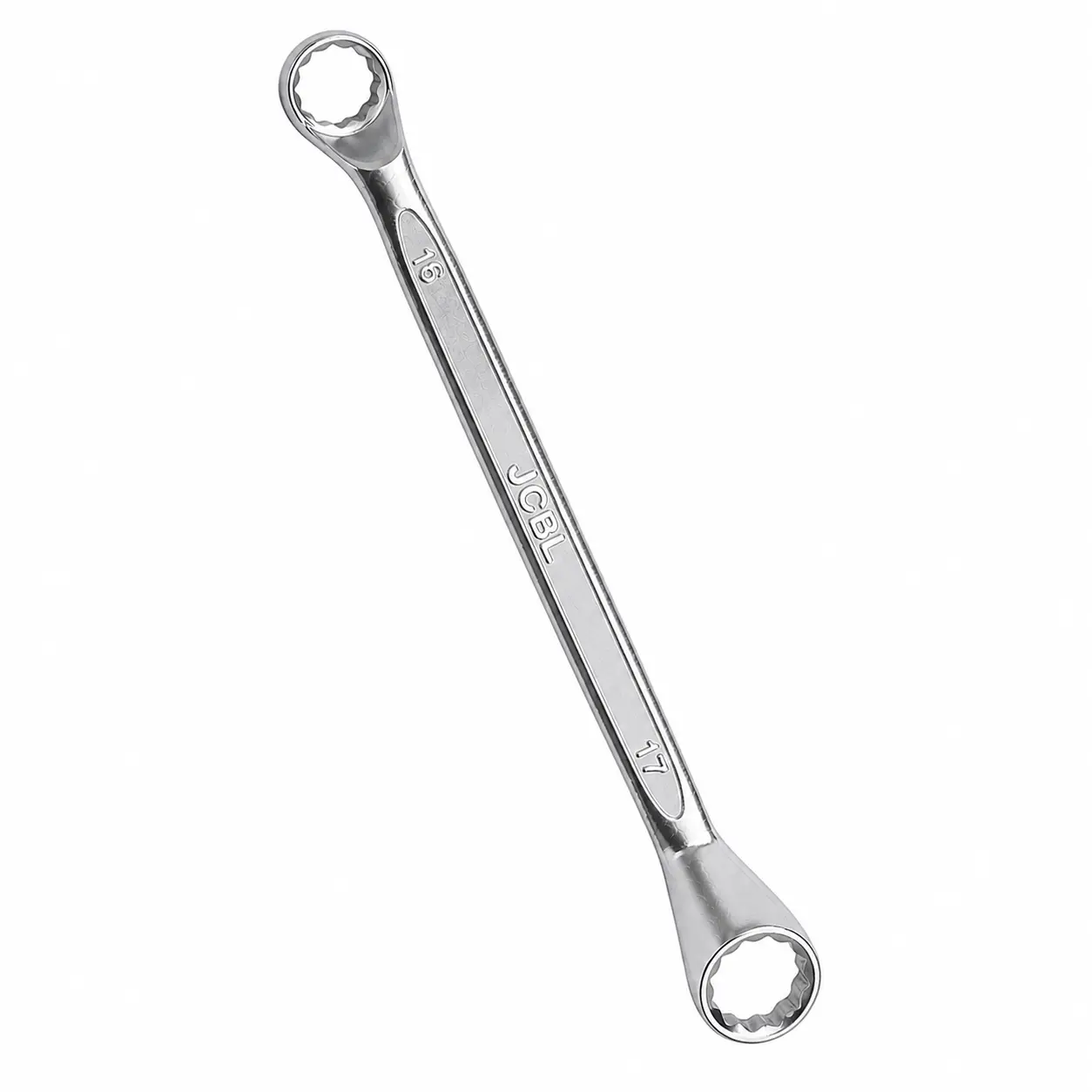

Bi-hexagon Ring End Spanner – Cold Stamped (JCBL-1017)

Categories: ,

Description

Features:

  • As Per DIN 3110 Standards.
  • Nickel Chrome Plated.
  • Made From High Quality CRV Steel.
  • Duly Hardened & Tempered.



Finishes Available:

Specifications

Article No. Size A1 A2 S1 = S2 D1 D2 T L ± 2mm. Weight
JCBL-1017 MM Gauge MM Jaw Th. MM Jaw Dia Small MM Jaw Dia Big MM Shank Th. MM Length MM Gms
JCBL-1017 6 x 7 6.03 – 6.15 7.03 – 7.15 6.4 – 5.6 11.7 10.7 4.4 178 52
JCBL-1017 8 x 9 8.03 – 8.15 9.03 – 9.15 7.4 – 6.3 14.2 13.2 4.8 190 64
JCBL-1017 10×11 10.04 – 10.19 11.04 – 11.19 8.8 – 8.0 17.2 16.0 5.4 200 90
JCBL-1017 12×13 12.04 – 12.24 13.04 – 13.24 9.4 – 9.0 20.0 18.8 6.0 215 115
JCBL-1017 14×15 14.05 – 14.27 15.05 – 15.27 1.6 – 9.8 22.8 21.5 6.4 233 150
JCBL-1017 16×17 16.05 – 16.27 17.05 – 17.30 11.8 – 10.6 25.0 24.0 6.6 245 190
JCBL-1017 18×19 18.05 – 18.30 19.06 – 19.36 12.6 – 11.0 28.0 27.4 6.8 265 239
JCBL-1017 20×22 20.06 – 20.36 22.06 – 22.36 13.6 – 12.6 32.8 30.4 7.2 290 300
JCBL-1017 21×23 21.06 – 21.36 23.06 – 23.36 14.0 – 12.8 34.5 31.0 7.4 315 330
JCBL-1017 24×27 24.08 – 24.36 27.08 – 27.48 14.6 – 13.2 39.5 35.8 7.8 327 370
JCBL-1017 25×28 25.08 – 25.36 28.08 – 28.48 14.8 – 13.8 41.0 37.5 7.8 330 429
JCBL-1017 30×32 30.08 – 30.48 32.08 – 32.48 16.8 – 14.8 46.0 43.5 9.6 360 574
Odd Size
8×10, 10×12, 12×14, 13×17, 14×17, 17×19, 19×22, 22×24, 24×26,

Sets

Set No. No. of Pcs./Set Size (mm)
JCBL-1017 6 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17
JCBL-1017 8 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22
JCBL-1017 12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32
