Spanners

A quality spanner set is always a good investment for keeps. JCBL Handtools is a leading spanners manufacturer in India and renowned for its high-quality tools especially Spanners conforming to DIN standards. We have a wide range of spanners with varying sizes, features, materials, and finish to suit your trade. Our range of spanners includes Double Open End Spanner, Combination Spanner, Double Ring Spanner, Gas Spanner, Single Open End Spanner, Tubular Box Spanner, Torex Wrench Spanner, Bi-hexagon Ring End Spanner and many more.

JCBL India’s spanners come in many styles and sizes to meet your job requirements. Made of durable steel, the wrenches can handle any metalworking, plumbing, or electrical job. A combination wrench applies plenty of torque to tackle any tightening challenge and is available individually or in kits.

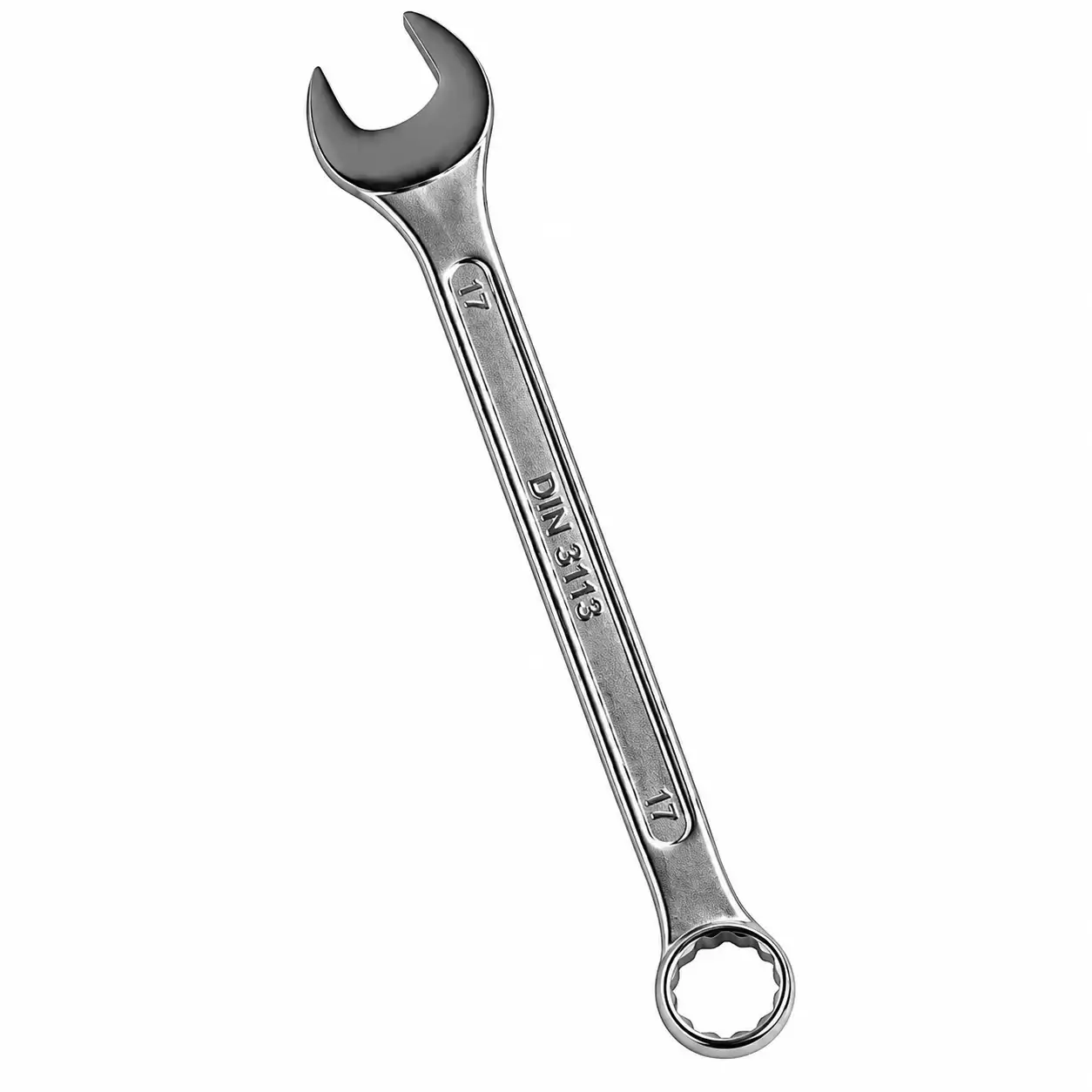

Combination Spanner CRV Steel – Cold Stamped (JCBL-1010)

Features

  • Nickel Chrome Plated.
  • As Per DIN 3113 Standards.
  • Duly Hardened & Tempered.
  • Made From High Quality CRV Steel.



Finishes Available:

JCBL-1010-DiaSpecifications

Article No. Size (mm) D1 D2 C1 C2 B L + 2mm. Weight
JCBL-1010 MM SAE Jaw Th. MM Ring Th. MM Ring Dia MM Jaw Dia MM Shank Th. MM Length MM Gms
JCBL-1010 6 1/4 3.7 5.8 10.5 15.6 2.7 100 17.3
JCBL-1010 7 4.1 6.4 12.0 17.6 2.9 110 19.9
JCBL-1010 8 5/16 4.3 6.8 13.6 19.6 3.1 120 25.4
JCBL-1010 9 4.5 7.4 15.0 21.6 3.3 130 31.0
JCBL-1010 10 3/8 4.9 7.8 16.3 23.6 3.5 140 40.7
JCBL-1010 11 7/16 5.1 8.2 17.5 25.6 3.7 150 47.8
JCBL-1010 12 5.3 8.6 18.8 27.6 3.9 160 57.4
JCBL-1010 13 1/2 5.5 9.0 20.2 29.6 4.2 170 68.8
JCBL-1010 14 9/16 5.9 9.4 21.7 31.6 4.1 180 81.6
JCBL-1010 15 6.1 9.7 22.9 33.4 4.3 190 89.0
JCBL-1010 16 5/8 6.2 10.0 24.6 35.4 4.5 200 103.7
JCBL-1010 17 11/16 6.3 10.4 26.0 37.4 4.5 210 124.4
JCBL-1010 18 6.5 10.8 27.1 39.4 4.7 220 143.1
JCBL-1010 19 3/4 6.7 11.6 28.7 41.4 4.9 230 164.0
JCBL-1010 20 6.9 11.8 29.8 43.4 4.9 240 188.3
JCBL-1010 21 13/16 7.2 12.2 31.4 45.4 5.1 250 217.8
JCBL-1010 22 7/8 7.3 12.4 32.5 47.2 5.1 260 238.5
JCBL-1010 23 7.4 12.8 34.0 49.2 5.3 270 265.4
JCBL-1010 24 7.5 13.2 35.6 51.2 5.4 280 265.6
JCBL-1010 25 7.7 13.6 37.0 53.0 5.7 290 307.9
JCBL-1010 26 7.9 14.0 38.7 55.0 5.9 300 348.0
JCBL-1010 27 8.3 14.4 40.3 57.0 6.3 310 355.0
JCBL-1010 28 8.7 15.0 41.6 59.0 6.4 320 365.9
JCBL-1010 29 9.0 15.6 43.0 61.0 6.7 330 431.3
JCBL-1010 30 9.3 15.7 44.5 63.0 7.3 340 453.2
JCBL-1010 32 9.9 16.4 47.2 67.0 7.5 360 511.0
Jumbo Sizes (Metric MM)
33, 34,35, 36,37 , 38, 39,4041, 42, 44, 46, 48, 50

Sets

No. of Pcs./Set Size (mm)
6 8, 10, 12, 13, 14, 17
8 Pcs 8, 9, 10, 11, 13, 14, 17, 19
12 Pcs 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22
25 Pcs 6 – 28, 30, 32

Combination Spanner CRV Steel – Full Polished, Satin Finish & Mirror Finish (JCBL-1008)

Features:

  • Nickel Chrome Plated.
  • As Per DIN 3113 Standards.
  • Duly Hardened & Tempered.
  • Made From High Quality CRV Steel

Specifications

Article No. Size (mm) Size SAE
JCBL-1008 6 1/4
JCBL-1008 7
JCBL-1008 8 5/16
JCBL-1008 9
JCBL-1008 10 3/8
JCBL-1008 11 7/16
JCBL-1008 12
JCBL-1008 13 1/2
JCBL-1008 14 9/16
JCBL-1008 15
JCBL-1008 16 5/8
JCBL-1008 17 11/16
JCBL-1008 18
JCBL-1008 19 3/4
JCBL-1008 20
JCBL-1008 21 13/16
JCBL-1008 22 7/8
JCBL-1008 23
JCBL-1008 24
JCBL-1008 25 1″
JCBL-1008 26
JCBL-1008 27 1.1/16″
JCBL-1008 28 1.1/8″
JCBL-1008 29
JCBL-1008 30
JCBL-1008 32 1.1/4″
Jumbo Sizes (Metric mm)
33, 34,35, 36,37, 38,39,40, 41, 42, 44, 46, 48, 50

Sets

No. of Pcs./Set Size (mm)
6 Pcs 8, 10, 12, 13, 14, 17
8 Pcs 8, 9, 10, 11, 13, 14, 17, 19
12 Pcs 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22
25 Pcs 6-28, 30, 32

Open End Slugging Wrench (JCBL-1024)

Features

  • As Per Din 133 Standards.
  • Duly Hardened & Tempered.
  • Made of High Quality CRV Steel.

Finishes Available:

Specifications

Article No. Size (mm)
JCBL – 1024 24
JCBL – 1024 27
JCBL – 1024 30
JCBL – 1024 32
JCBL – 1024 34
JCBL – 1024 36
JCBL – 1024 38
JCBL – 1024 41
JCBL – 1024 46
JCBL – 1024 50
JCBL – 1024 55
JCBL – 1024 60
JCBL – 1024 65
JCBL – 1024 70
JCBL – 1024 75
JCBL – 1024 80
JCBL – 1024 85
JCBL – 1024 90
JCBL – 1024 95
JCBL – 1024 100
JCBL – 1024 105

Ring Slugging Wrench (JCBL-1023)

Ring Slugging Wrench Features

  • As Per DIN 744 Standards.
  • Duly Hardened & Tempered.
  • Made of High Quality Carbon Steel.

Finishes Available:

Specifications

Article No. Size (mm)
JCBL – 1023 23
JCBL – 1023 24
JCBL – 1023 27
JCBL – 1023 30
JCBL – 1023 32
JCBL – 1023 34
JCBL – 1023 36
JCBL – 1023 38
JCBL – 1023 41
JCBL – 1023 46
JCBL – 1023 50
JCBL – 1023 55
JCBL – 1023 60
JCBL – 1023 65
JCBL – 1023 70
JCBL – 1023 75
JCBL – 1023 80
JCBL – 1023 90
JCBL – 1023 95
JCBL – 1023 100
JCBL – 1023 105
JCBL – 1023 110
JCBL – 1023 115
JCBL – 1023 120
JCBL – 1023 125
JCBL – 1023 130
JCBL – 1023 135
JCBL – 1023 140

Single Open End Spanner (JCBL-1021)

Features

  • As Per DIN 894 Standards.
  • Duly Hardened & Tempered.
  • Made of High Quality Carbon Steel.

Finishes Available:

Specifications

Article No. Size (mm)
JCBL – 1021 6
JCBL – 1021 7
JCBL – 1021 8
JCBL – 1021 9
JCBL – 1021 10
JCBL – 1021 11
JCBL – 1021 12
JCBL – 1021 13
JCBL – 1021 14
JCBL – 1021 15
JCBL – 1021 17
JCBL – 1021 18
JCBL – 1021 19
JCBL – 1021 21
JCBL – 1021 22
JCBL – 1021 23
JCBL – 1021 24
JCBL – 1021 25
JCBL – 1021 27
JCBL – 1021 30
JCBL – 1021 32
JCBL – 1021 34
JCBL – 1021 36
JCBL – 1021 38
JCBL – 1021 41
JCBL – 1021 46
JCBL – 1021 50
JCBL – 1021 55
JCBL – 1021 60
JCBL – 1021 65
JCBL – 1021 70
JCBL – 1021 75
JCBL – 1021 80
JCBL – 1021 85
JCBL – 1021 90
JCBL – 1021 95
JCBL – 1021 100
JCBL – 1021 105
JCBL – 1021 110
JCBL – 1021 115
JCBL – 1021 120
JCBL – 1021 125
JCBL – 1021 130
JCBL – 1021 135

Tubular Box Spanner (JCBL-1028)

Features:

  • Duly Heat Treated Jaws.
  • Big sizes available in Matt and Zinc Finish

Finishes Available:

Specifications

Article No. Size (mm)
JCBL – 1028 6 x 7
JCBL – 1028 8 x 9
JCBL – 1028 10 x 11
JCBL – 1028 12 x 13
JCBL – 1028 14 x 15
JCBL – 1028 16 x 17
JCBL – 1028 18 x 19
JCBL – 1028 20 x 22
JCBL – 1028 21 x 23
JCBL – 1028 24 x 27
JCBL – 1028 25 x 28
JCBL – 1028 30 x 32
JCBL – 1028 32 x 36
JCBL – 1028 36 x 41
JCBL – 1028 41 x 46
JCBL – 1028 46 x 50
JCBL – 1028 50 x 55
JCBL – 1028 55 x 60

Flare Nut Wrench (JCBL-1026)

Features:

  • Full Polished.
  • As Per DIN 3118 Standards.
  • Duly Hardened & Tempered.
  • Also Available In Cold Stamped.
  • Made From High Quality CRV Steel.

Finishes Available:

Specifications

Article No. Size (mm)
JCBL-1026 8 x 10
JCBL-1026 9 x 11
JCBL-1026 10 x 12
JCBL-1026 13 x 14
JCBL-1026 15 x 17
JCBL-1026 16 x 18

Combination Ring & Open End Spanner -Stubby Wrench (JCBL-1025)

Combination Ring & Open End Spanner (Stubby Wrench) Features:

  • Nickel Chrome Plated.
  • Full Polished Elliptical Panel.
  • Duly Hardened & Tempered.
  • Made From High Quality CRV Steel.

Finishes Available:

Specifications

Article No. Size
JCBL-1025 MM SAE
JCBL-1025 6
JCBL-1025 7
JCBL-1025 8
JCBL-1025 9
JCBL-1025 10 3/8
JCBL-1025 11 7/16
JCBL-1025 12
JCBL-1025 13 1/2
JCBL-1025 14 9/16
JCBL-1025 15
JCBL-1025 16 5/8
JCBL-1025 17 11/16
JCBL-1025 18
JCBL-1025 19 3/4

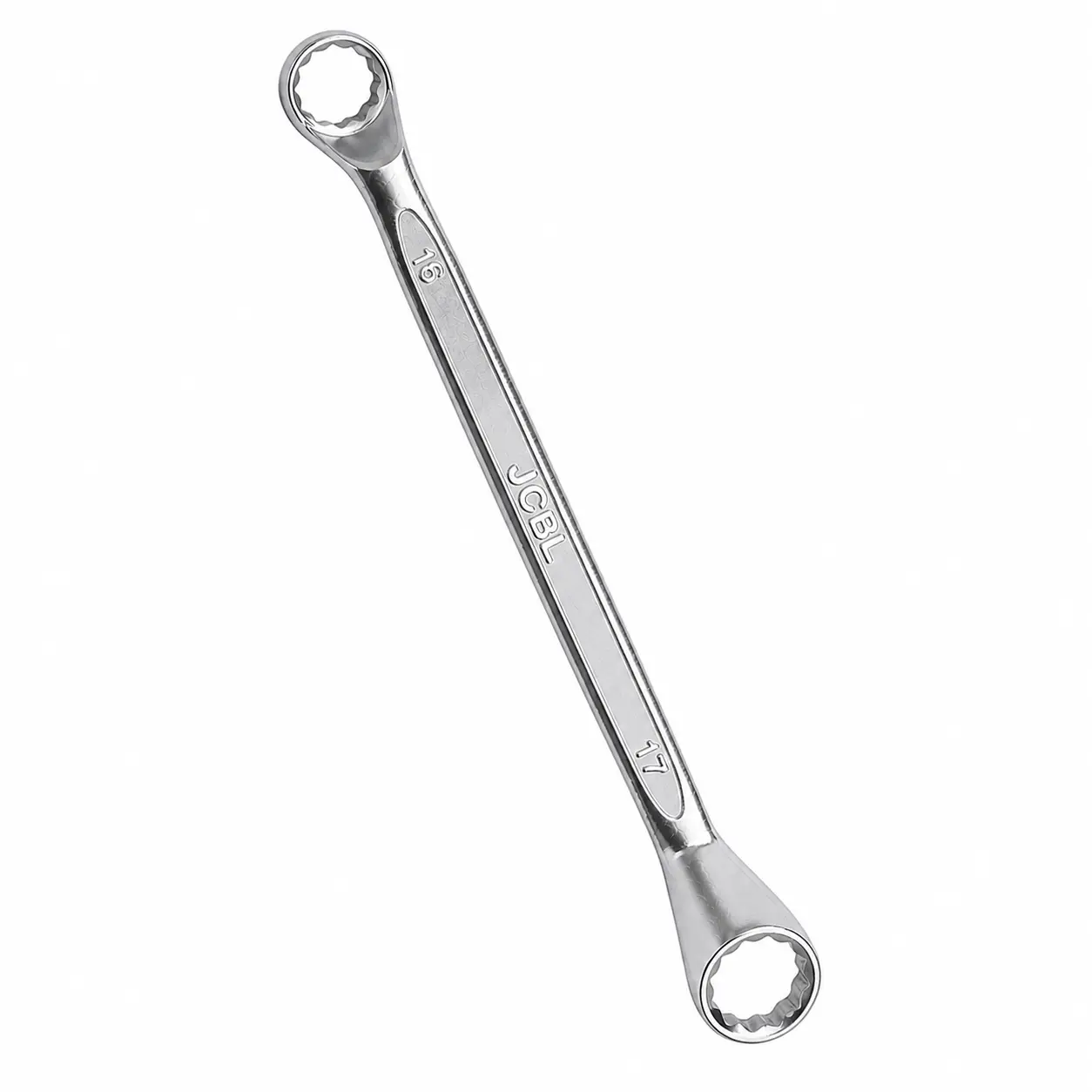

Bi-hexagon Ring End Spanner – Cold Stamped (JCBL-1017)

Features:

  • As Per DIN 3110 Standards.
  • Nickel Chrome Plated.
  • Made From High Quality CRV Steel.
  • Duly Hardened & Tempered.



Finishes Available:

Specifications

Article No. Size A1 A2 S1 = S2 D1 D2 T L ± 2mm. Weight
JCBL-1017 MM Gauge MM Jaw Th. MM Jaw Dia Small MM Jaw Dia Big MM Shank Th. MM Length MM Gms
JCBL-1017 6 x 7 6.03 – 6.15 7.03 – 7.15 6.4 – 5.6 11.7 10.7 4.4 178 52
JCBL-1017 8 x 9 8.03 – 8.15 9.03 – 9.15 7.4 – 6.3 14.2 13.2 4.8 190 64
JCBL-1017 10×11 10.04 – 10.19 11.04 – 11.19 8.8 – 8.0 17.2 16.0 5.4 200 90
JCBL-1017 12×13 12.04 – 12.24 13.04 – 13.24 9.4 – 9.0 20.0 18.8 6.0 215 115
JCBL-1017 14×15 14.05 – 14.27 15.05 – 15.27 1.6 – 9.8 22.8 21.5 6.4 233 150
JCBL-1017 16×17 16.05 – 16.27 17.05 – 17.30 11.8 – 10.6 25.0 24.0 6.6 245 190
JCBL-1017 18×19 18.05 – 18.30 19.06 – 19.36 12.6 – 11.0 28.0 27.4 6.8 265 239
JCBL-1017 20×22 20.06 – 20.36 22.06 – 22.36 13.6 – 12.6 32.8 30.4 7.2 290 300
JCBL-1017 21×23 21.06 – 21.36 23.06 – 23.36 14.0 – 12.8 34.5 31.0 7.4 315 330
JCBL-1017 24×27 24.08 – 24.36 27.08 – 27.48 14.6 – 13.2 39.5 35.8 7.8 327 370
JCBL-1017 25×28 25.08 – 25.36 28.08 – 28.48 14.8 – 13.8 41.0 37.5 7.8 330 429
JCBL-1017 30×32 30.08 – 30.48 32.08 – 32.48 16.8 – 14.8 46.0 43.5 9.6 360 574
Odd Size
8×10, 10×12, 12×14, 13×17, 14×17, 17×19, 19×22, 22×24, 24×26,

Sets

Set No. No. of Pcs./Set Size (mm)
JCBL-1017 6 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17
JCBL-1017 8 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22
JCBL-1017 12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32
