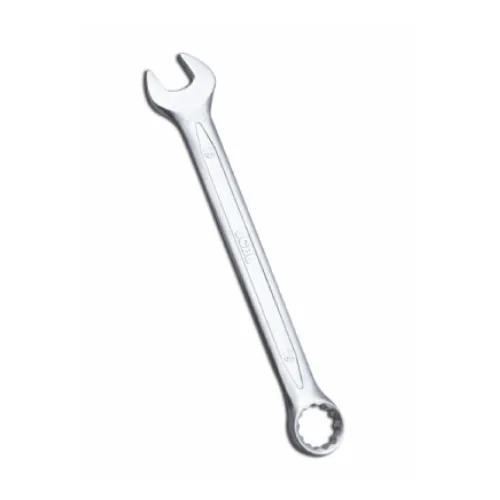

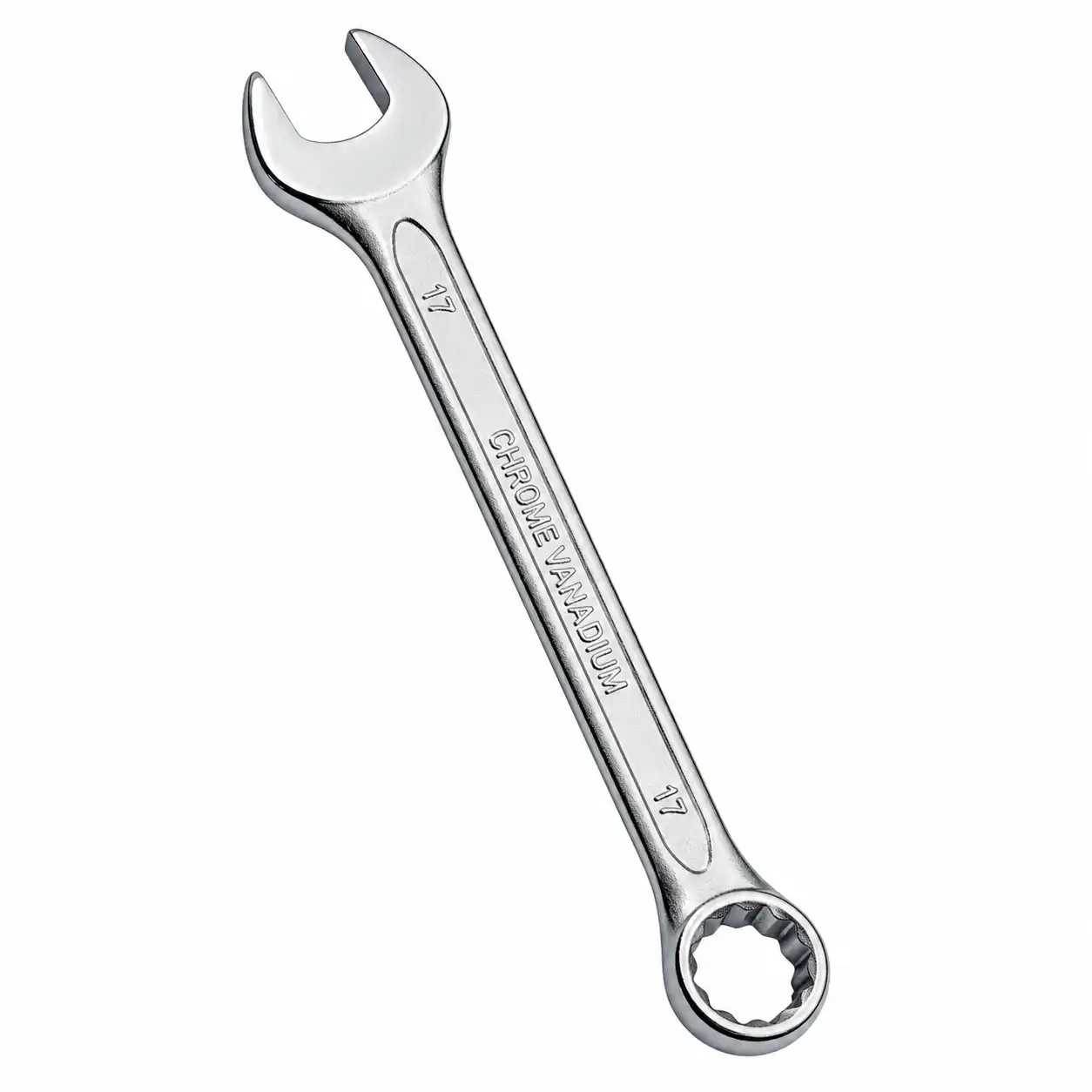

Combination Spanner CRV Steel – Cold Stamped (JCBL-1010)

Description

Features

  • Nickel Chrome Plated.
  • As Per DIN 3113 Standards.
  • Duly Hardened & Tempered.
  • Made From High Quality CRV Steel.



Finishes Available:

JCBL-1010-DiaSpecifications

Article No. Size (mm) D1 D2 C1 C2 B L + 2mm. Weight
JCBL-1010 MM SAE Jaw Th. MM Ring Th. MM Ring Dia MM Jaw Dia MM Shank Th. MM Length MM Gms
JCBL-1010 6 1/4 3.7 5.8 10.5 15.6 2.7 100 17.3
JCBL-1010 7   4.1 6.4 12.0 17.6 2.9 110 19.9
JCBL-1010 8 5/16 4.3 6.8 13.6 19.6 3.1 120 25.4
JCBL-1010 9   4.5 7.4 15.0 21.6 3.3 130 31.0
JCBL-1010 10 3/8 4.9 7.8 16.3 23.6 3.5 140 40.7
JCBL-1010 11 7/16 5.1 8.2 17.5 25.6 3.7 150 47.8
JCBL-1010 12   5.3 8.6 18.8 27.6 3.9 160 57.4
JCBL-1010 13 1/2 5.5 9.0 20.2 29.6 4.2 170 68.8
JCBL-1010 14 9/16 5.9 9.4 21.7 31.6 4.1 180 81.6
JCBL-1010 15   6.1 9.7 22.9 33.4 4.3 190 89.0
JCBL-1010 16 5/8 6.2 10.0 24.6 35.4 4.5 200 103.7
JCBL-1010 17 11/16 6.3 10.4 26.0 37.4 4.5 210 124.4
JCBL-1010 18   6.5 10.8 27.1 39.4 4.7 220 143.1
JCBL-1010 19 3/4 6.7 11.6 28.7 41.4 4.9 230 164.0
JCBL-1010 20   6.9 11.8 29.8 43.4 4.9 240 188.3
JCBL-1010 21 13/16 7.2 12.2 31.4 45.4 5.1 250 217.8
JCBL-1010 22 7/8 7.3 12.4 32.5 47.2 5.1 260 238.5
JCBL-1010 23   7.4 12.8 34.0 49.2 5.3 270 265.4
JCBL-1010 24   7.5 13.2 35.6 51.2 5.4 280 265.6
JCBL-1010 25   7.7 13.6 37.0 53.0 5.7 290 307.9
JCBL-1010 26   7.9 14.0 38.7 55.0 5.9 300 348.0
JCBL-1010 27   8.3 14.4 40.3 57.0 6.3 310 355.0
JCBL-1010 28   8.7 15.0 41.6 59.0 6.4 320 365.9
JCBL-1010 29   9.0 15.6 43.0 61.0 6.7 330 431.3
JCBL-1010 30   9.3 15.7 44.5 63.0 7.3 340 453.2
JCBL-1010 32   9.9 16.4 47.2 67.0 7.5 360 511.0
Jumbo Sizes (Metric MM)
33, 34,35, 36,37 , 38, 39,4041, 42, 44, 46, 48, 50

Sets

No. of Pcs./Set Size (mm)
6 8, 10, 12, 13, 14, 17
8 Pcs 8, 9, 10, 11, 13, 14, 17, 19
12 Pcs 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22
25 Pcs 6 – 28, 30, 32
