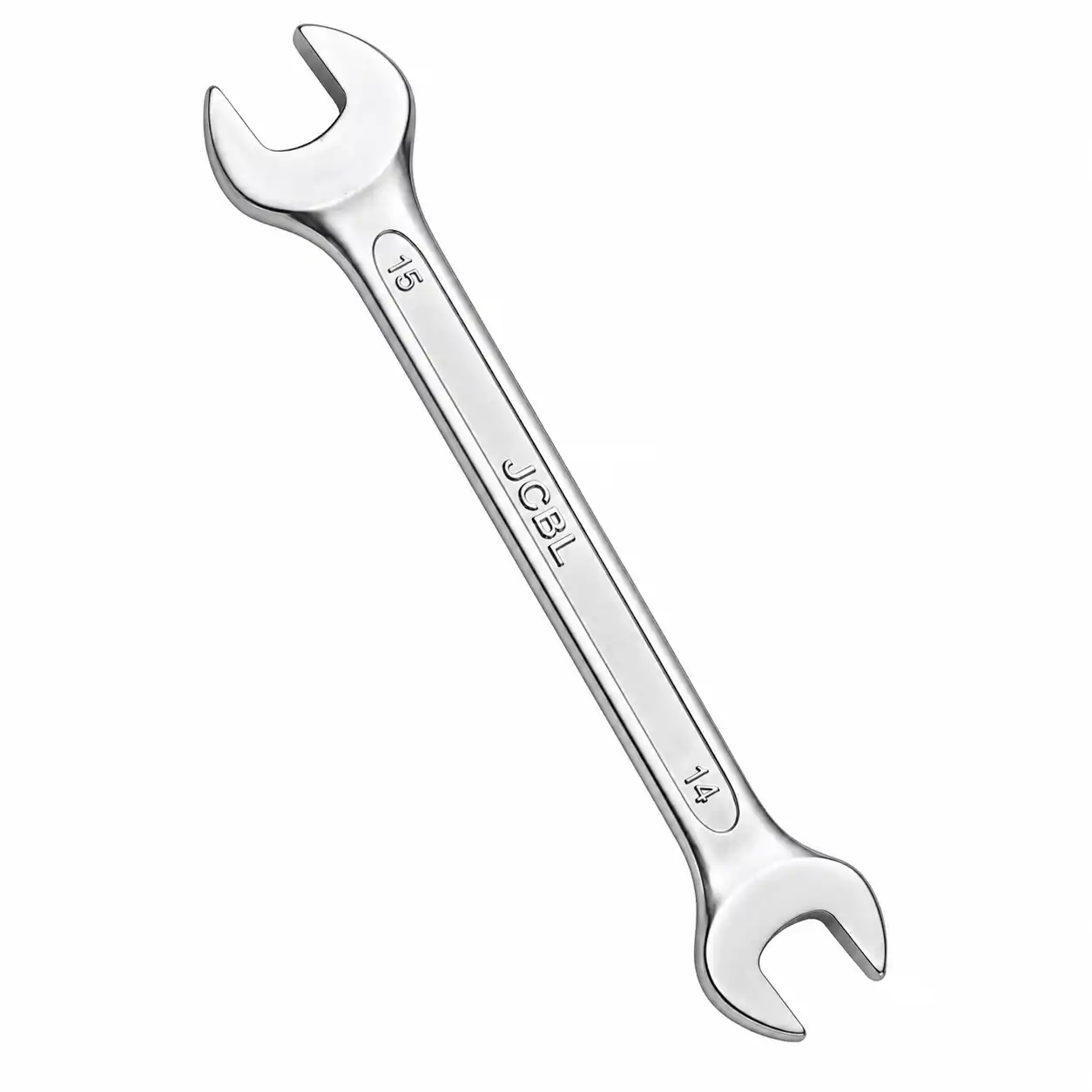

Double Open End Spanner CRV Steel Cold Stamped (JCBL-1003)

Double Open End Spanner CRV Steel Cold Stamped (JCBL-1003)

Category: Double Open End Spanners

Description

Description

Features:

As Per DIN 3110 Standards.
Nickel Chrome Plated.
Made From High Quality CRV Steel.
Duly Hardened & Tempered.

Finishes Available:

Specifications

Article No.	Size	A1	A2	S1 = S2	D1	D2	T	L ± 2mm.	Weight
JCBL-1003	MM	Gauge MM		Jaw Th. MM	Jaw Dia Small MM	Jaw Dia Big MM	Shank Th. MM	Length MM	Gms
JCBL-1003	6 x 7	6.03 – 6.15	7.03 – 7.15	3.5	16.00	18.00	2.8	123.00	19
JCBL-1003	8 x 9	8.03 – 8.15	9.03 – 9.15	3.6	19.5	21.50	2.8	139.00	31
JCBL-1003	10×11	10.04 – 10.19	11.04 – 11.19	4.4	23.5	25.50	3.9	158.00	47
JCBL-1003	12×13	12.04 – 12.24	13.04 – 13.24	5.0	27.0	29.00	4.0	171.00	69
JCBL-1003	14×15	14.05 – 14.27	15.05 – 15.27	5.4	31.0	33.00	4.4	185.00	75
JCBL-1003	16×17	16.05 – 16.27	17.05 – 17.30	5.8	35.0	37.00	4.6	205.00	122
JCBL-1003	18×19	18.05 – 18.30	19.06 – 19.36	6.2	38.5	40.50	5.0	220.00	164
JCBL-1003	20×22	20.06 – 20.36	22.06 – 22.36	6.8	42.5	46.50	5.4	235.00	198
JCBL-1003	21×23	21.06 – 21.36	23.06 – 23.36	7.0	44.0	48.00	5.6	240.00	242
JCBL-1003	24×27	24.08 – 24.36	27.08 – 27.48	7.6	50.0	55.00	5.8	260.00	256
JCBL-1003	25×28	25.08 – 25.36	28.08 – 28.48	8.0	52.0	58.00	6.0	275.00	325
JCBL-1003	30×32	30.08 – 30.48	32.08 – 32.48	8.8	61.0	66.00	6.6	290.00	450

Odd Sizes
8×10, 10×12, 10×13, 11×13, 12×14, 13×17, 14×17, 17×19, 19×22, 22×24,24×26, 27×32

Sets

Set No.	No. of Pcs./Set	Size (mm)
JCBL-1003	6	6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17
JCBL-1003	8	6 x 7, 8 x 9, 10 x 11, 12 x 13,14 x 15, 16 x 17, 18 x 19, 20 x 22
JCBL-1003	12	6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 26, 25 x 28, 30 x 32
