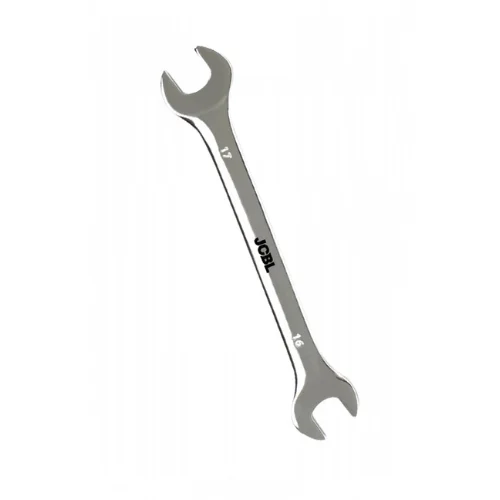

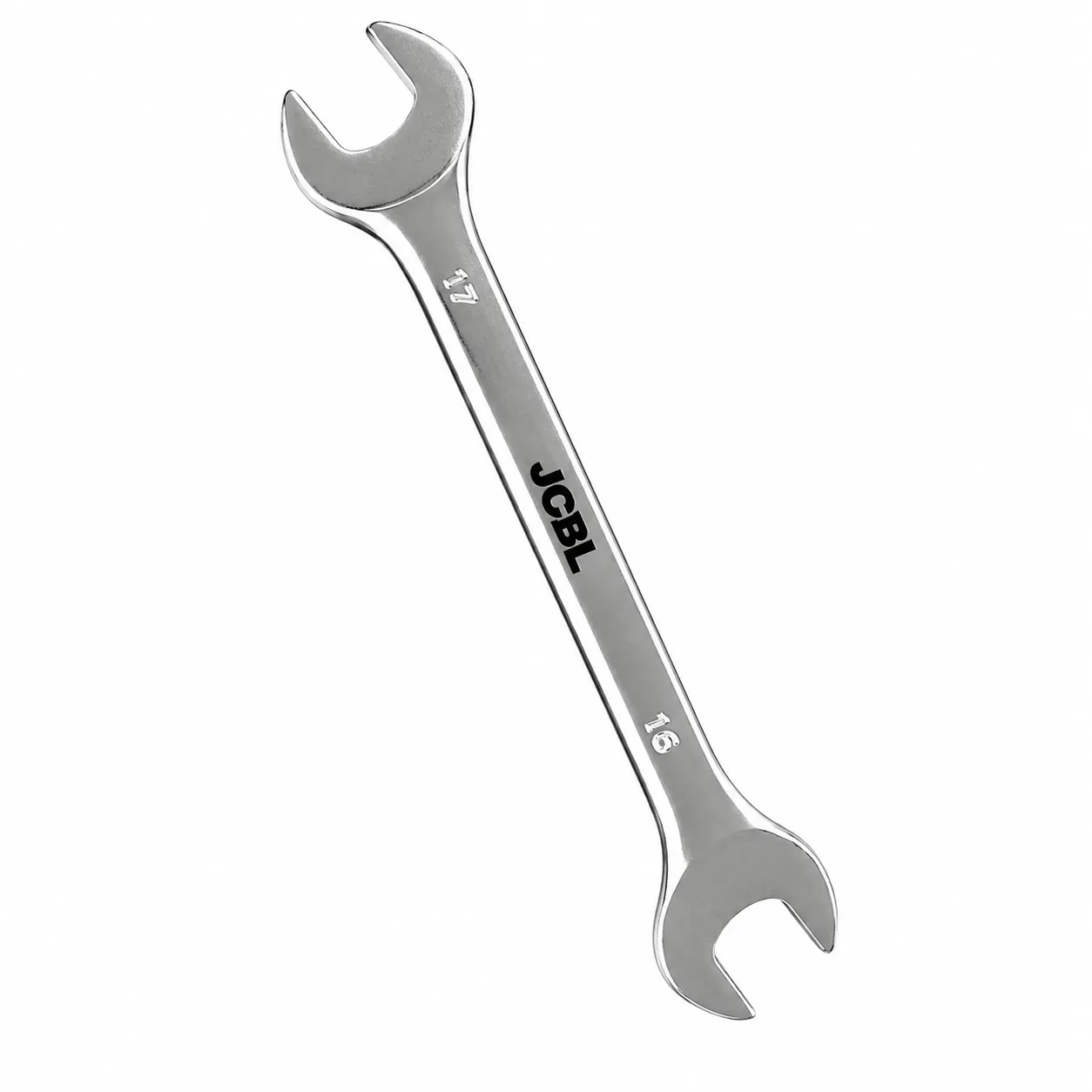

Double Open End CRV Steel Full Polished Mirror Finish (JCBL-1001)

Double Open End Spanner CRV Steel - Satin Finish (JCBL-1002)

Double Open End – Full Polished (DIN 3110)
The range of these spanners, made of chrome vanadium steel, bring to you the precision & unmatched quality. Also available in Private Label.

Specifications

Article No. Size (mm) Size (inch) Length (mm) Qty./Ctn. (pcs.) Net Wt. (kgs) Gr.Wt. (kgs)
30546 4 x 5   103 1000 21.000 22.500
30545 5.5 x 7   122 1000 24.000 25.500
30501 6 x 7 1/4 x 5/16 122 1000 19.000 20.500
30502 8 x 9 5/16 x 3/8 140 600 19.200 20.500
30503 8 x 10   140 600 19.800 21.000
30504 10 x 11 3/8 x 7/16 156 400 18.000 19.500
30505 10 x 13   172 400 22.400 24.000
30506 11 x 13   172 400 28.000 29.500
30507 12 x 13   172 300 20.400 22.000
30508 13 x 15 1/2 x 9/16 190 200 18.200 20.000
30509 14 x 15 9/16 x 5/8 190 200 18.800 20.000
30510 13 x 17   204 200 23.000 24.500
30511 14 x 17 9/16 x 11/16 204 200 23.000 24.500
30512 16 x 17 5/8 x 11/16 204 150 17.550 19.000
30513 16 x 18   204 150 17.700 19.000
30514 17 x 19 11/16 x 3/4 223 150 22.500 24.000
30515 18 x 19   223 100 16.000 17.500
30516 18 x 21   236 100 17.000 18.500
30517 19 x 22 3/4 x 7/8 236 100 19.300 21.000
30518 20 x 22   236 100 20.500 22.000
30519 19 x 24 13/16 x 7/8 250 80 19.120 21.000
30520 21 x 23   250 80 19.360 21.000
30521 21 x 24 13/16 x 15/16 250 80 20.080 21.500
30522 22 x 24   250 80 18.960 20.500
30523 24 x 26 1 x 1.1/8 265 60 20.940 22.500
30524 24 x 27 15/16 x 1.1/16 265 60 20.160 21.500
30525 25 x 28 1 x 1.1/8 280 60 22.920 24.500
30526 27 x 30 1.1/16 x 1.3/16 280 60 21.540 23.000
30527 27 x 32   302 40 20.360 22.000
30528 30 x 32   302 40 19.000 20.500
30529 30 x 34   302 30 16.410 18.000
30530 30 x 36   325 30 15.780 17.000
30537 32 x 36   325 20 11.600 13.100
30548 34 x 36   325 20 10.500 12.200
30531 36 x 41   358 20 17.400 19.000
30549 41 x 46   400 10 12.600 14.100
3054650 46 x 50   452 8 9.100 10.600
3055055 50 x 55   486 8 13.300 14.800
3055560 55 x 60   521 8 15.300 16.800

Sets

Set No. No. of Pcs./Set Size (mm) Qty./Ctn. (pcs.) Net Wt. (kgs) Gr.Wt. (kgs)
30580 6 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 60 23.100 24.500
30581 8 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 30 22.800 24.000
30582 12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32 10 22.080 23.500
Categories: ,

Description

Features:

  • Nickel Chrome Plated.
  • As per DIN 3110 Standards.
  • Duly Hardened & Tempered.
  • Made from High Quality CRV Steel.

Finishes Available:

Specifications

Article No. Size (mm)
JCBL-1001 6 x 7
JCBL-1001 8 x 9
JCBL-1001 10 x 11
JCBL-1001 12 x 13
JCBL-1001 14 x 15
JCBL-1001 16 x 17
JCBL-1001 18 x 19
JCBL-1001 20 x 22
JCBL-1001 21 x 23
JCBL-1001 24 x 27
JCBL-1001 25 x 28
JCBL-1001 30 x 32

Sets

Odd Sizes
8×10, 10×12, 10×13, 11×13, 12×14, 13×17, 14×17, 17×19, 19×22, 22×24, 24×26, 27×32, 9×11, 13×14, 27×30, 32×36, 34×36
No. of Pcs./Set Metric Size (MM)
6 Pcs 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17
8 Pcs 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22
12 Pcs 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32
